«Maximum versatility and cutting edge technology at your service»

Imagen destacada del producto

Single-phase

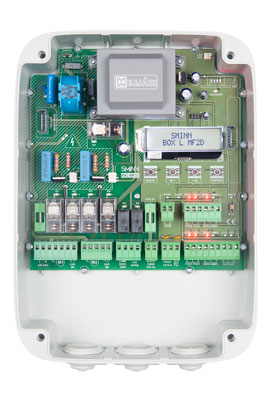

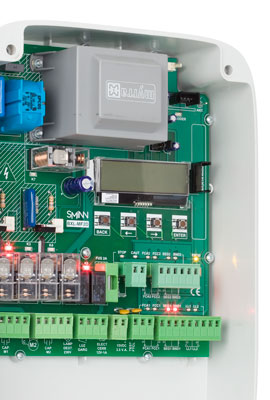

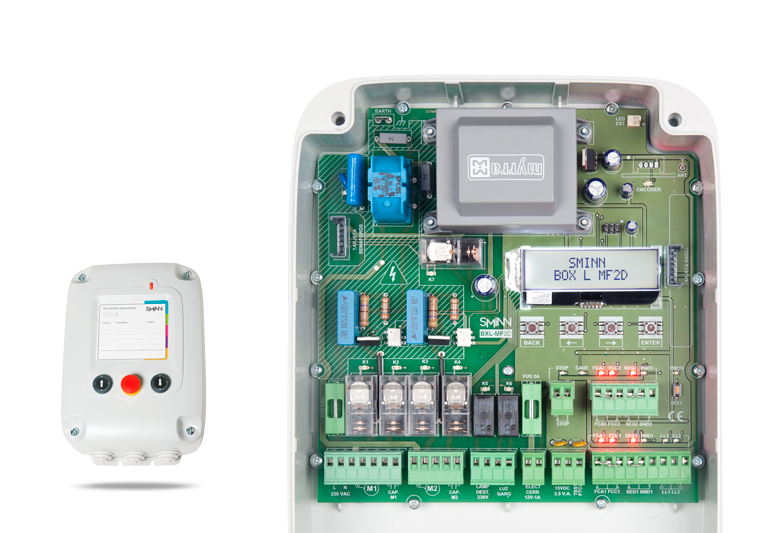

BOX L MF2D

Universal motor controller for two single-phase motors with digital configuration

Digital configuration

Its high quality LCD display and keyboard allows for intuitive maneuver configuration. An assisted configuration system provides a more confortable way to configure the maneuver as it runs. Configuration includes:

  • Maneuver and start-up regulable motor power
  • Support for electromechanical motors and hydraulical motors with anitblocking measures
  • Independent soft stop for both opening and closing
  • Security test for both light barriers and security bands

All kinds of doors and gates

Designed for swinging gates, sliding gates, sectional doors, rolling shutters and rolling doors.

Multiple configuration modes

This motor controller allows 5 different operating modes consistent with the EN1324-1:2003 European standard: automatic, optional automatic, alternating stop (semiautomatic), dead-man and semiautomatic dead-man.

Models

BOX L MF2D No external buttons
BOX L MF2D BT-002 Polycarbonate button cover
BOX L MF2D BT-003 Electromechanic button cover
