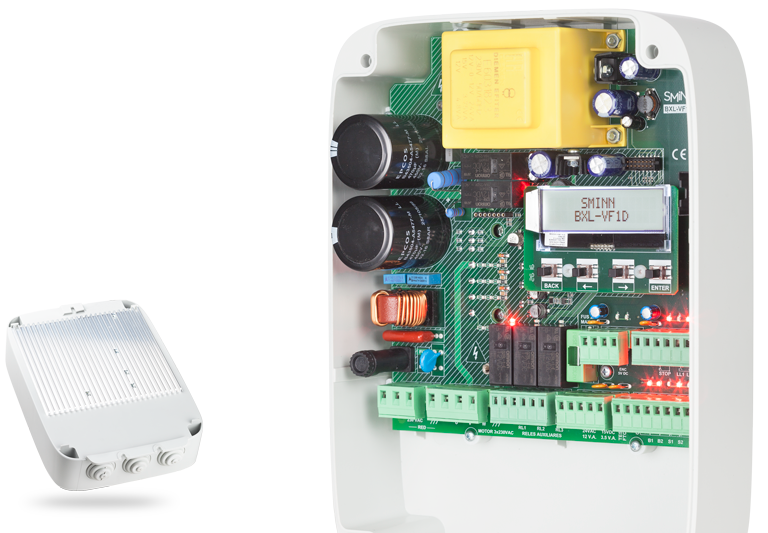

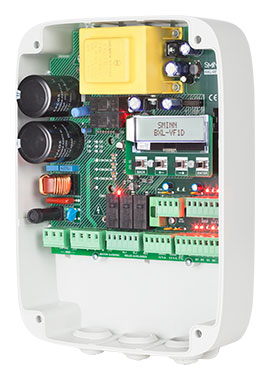

Universal motor controller for one three-phase 230V motor with digital configuration and frequency inverter
«Maximum versatility and cutting edge technology at your service»
Three-phase
BOX L VF1D
Digital configuration

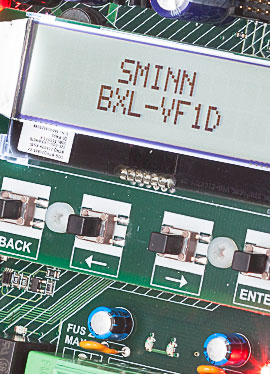

Its high quality LCD display and keyboard allows for intuitive maneuver configuration. An assisted configuration system provides a more confortable way to configure the maneuver as it runs. Configuration includes:
- Maneuver and start-up regulable motor power and speed
- Fine ramp regulation for speed changes
- Independent soft stop for both opening and closing
- Security test for both light barriers and security bands
Integrated protections
The BOX L VF1D implements an state-of-the-art current sensing system that allows it to detect overcurrent and shortcircuit faster than typical protection systems. The controller learns how much current the motor uses and allows the installer to tune the protections for each particular case. Additional protection is provided with our current sensing algorithm that detects collisions and lockings before the consumption escalates.Frequency inverter
The controller itself acts as a frequency inverter thanks to an in-house design with the latest technology and know-how on vectorial control for frequency inverters.All kinds of doors and gates
Designed for sliding gates, sectional doors, rolling shutters, overhead and speed doors.Multiple configuration modes
This motor controller allows 5 different operating modes consistent with the EN1324-1:2003 European standard: automatic, optional automatic, alternating stop (semiautomatic), dead-man and semiautomatic dead-man.Models
| BOX L VF1D | No external buttons | ||
|---|---|---|---|
| BOX L VF1D BT-002 | Polycarbonate button cover | ||
| BOX L VF1D BT-003 | Electromechanic button cover |
